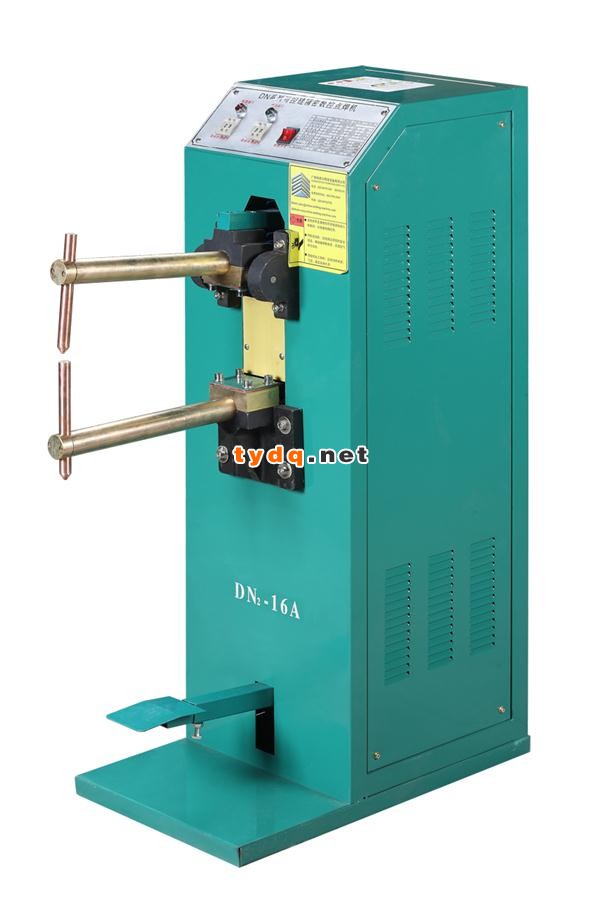

DN1脚踏板系列点焊机技术参数:
1。它由先进的孤立的钢铁消耗量较低和稳定的电能释放。
2。先进的模组,自动控制电电流。
3。数字集成电路控制的时候,20组时间控制系统,以确保良好的焊接结果。
4。美丽的焊接效果很好的选择。
Technology Parameters :
1.It made up of advanced isolated steel with low wastage and stable electricity releasing.
2.Advanced mould groups, automatic control electricity current.
3.Digital IC control of time, 20 groups time controlling system to make sure the excellent welding result.
4.Beautiful welding effect for excellent choice.
|
PARAMETER |
RATED POWER |
RATED VOLTAGE |
RATED FREQUENCY |
MAX SHORT CURRENT |
MAX WELDING INPUT |
ARM LENGTH |
MAX PRESSURE |
ELECTRODE STROKE |
COOLING WATER VOLUME |
WELDING CAPACITY (LOW CARBON STEEL) |
|
MODEL NO. |
KVA |
V |
Hz |
A |
KVA |
mm*mm |
N |
mm |
L/min |
mm |
|
DN1-16K |
16 |
380-415 |
50/60 |
10800 |
30 |
250*380 |
1000 |
40 |
2 |
2.0+2.0 |
|
DN1-25K |
25 |
380-415 |
50/60 |
13200 |
45 |
250*380 |
1000 |
40 |
2 |
3.0+3.0 |
|
DN1-35K |
40 |
380-415 |
50/60 |
17800 |
50 |
250*380 |
1000 |
40 |
2 |
4.0+4.0 |
