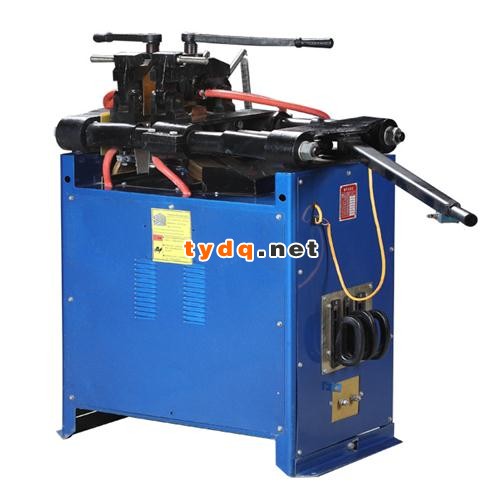

UN4系列手动对焊机
UN4 Series Manual Butt Welding Machine
主要特点
1.UN4系列手动对焊机是一种手动杠杆加压式对焊机，该焊机采用手控杠杆加压的方式对工件进行闪光对焊和电阻对焊。
2.专用于焊接各种钢及有色金属等简易型工件，例如低碳钢，中碳钢，不锈钢以及有色金属的圆丝，扁丝，圆钢，扁钢，螺纹钢，等等。
3.质量稳定，无需气压，操作简单，移动方便，广泛应用于建筑，高架路，大桥，高速公路，金属拉丝，水泥预制场，金属制品等行业。
Main Features
1.UN4 Series Manual Butt Welding Machine is one kind of manual lever pressuring type of welding,the welding pressure is by way of manual control lever on the workpiece to achieve the butt flash butt welding and resistance butt welding.
2.It is mainly used for butt welding variety of steel and Non-ferrous metals,such as low carbon steel, carbon steel, stainless steel and nonferrous metal round wire, flat wire, round steel, flat steel, rebar steel, and so on.
3.Because this kind of butt welding machine no need air compressor, simple operation,easy to move,stable quality,therefore widely used for the field of construction,express way,bridge,steel wire drawing plant,cement prefabricated factory,metal products and so on.Especially suitable for using in the construction field and country side.
Main Technical Parameter
|
产品型号 Product Model |
输入电压 Input Voltage（V） |
输入电容 Input Capcaity (KVA) |
空载电压 No-load Voltage (V) |
焊接截面 Welding Surface （mm2） |
输入电流 Input Current（A） |
功率调节范围 Power Regulate Range |
|
UN4-25 |
380 |
25 |
1.76-3.53 |
400 |
65 |
1-8 |
|
UN4-35 |
380 |
35 |
1.76-5.25 |
450 |
100 |
1-8 |
|
UN4-50 |
380 |
50 |
1.76-7.00 |
550 |
160 |
1-8 |
|
UN4-75 |
380 |
75 |
3.58-7.16 |
650 |
198 |
1-8 |
|
UN4-100 |
380 |
100 |
4.50-7.65 |
800 |
263 |
1-8 |
|
UN4-125 |
380 |
125 |
4.50-8.10 |
1000 |
328 |
1-8 |
|
UN4-150 |
380 |
150 |
5.20-10.5 |
1250 |
395 |
1-8 |
